The Mini Hydraulic press













Home | New Knives | About me | Teaching | Teaching Page 2 | Teaching page 3 | Teaching page 4 | Teaching page 5 | Teaching page 6 | Teaching page 7 | Teaching page 8 | Teaching page 9 | End of the class pictures | Teaching at The Lake Champlain Maritime Museum | Lake Champlain Maritime Museum teaching Page 2 | For sale | Knives Page 1 | Knives page 2 | Knives page 3 | Knife page 4 | Knife page 5 | Knife page 6 | Knives page 7 | Knives page 8 | Knives page 9 | Blade Page 10 | Wedding party Knives | Early knives | Knives in the making | knives being worked on | More Blades in the making | Page 2 Knives in the works | Knives in the works 3 | Forge work | Playin in the Shop | Blacksmithing page 1 | Blacksmithing page 2 | Blacksmithing page 3 | Blacksmithing page 4 | Blacksmithing Page 5 | Blacksmithing page 6 | Blacksmithing page 7 | Hammer Class | The Rose Page | Bobber Build | SOLD/Knives I have moved off the for sale page | Demo page | Champlain Maritime Museum | Museum page 2 | Tools page | The Mini Hydraulic press | Sawmill page | Air Hammer Page | In the shop and, At work | My last Shop | The Shop Tour | Favorite Knife Makin Books | People page | Hunt of a Lifetime | Hunt Of A Lifetime | Fly Fishing Adventures | Wyoming Adventure | Links | My little Buddies | Trade offer | The End





I made this little press for my demo at the New England Blacksmiths fall meet. It was a big hit and it got lots of attention. Many pictures takenand questions asked and answered.This is a very simple design and can be put together rather quickly. First and most important is the air over hydraulic jack. Its a 20 ton Jack from Harbor Freight tools on sale around 80-90 bucks not on sale about $119.I built my frame from some left over 2x2 square tubing with a 1/4 inch wall. I built it 22" tall and there is 8" between the uprights.It is just enough to get the jack inbetween the uprights with a little bit of grinding off the base of the jack. I also welded the jack to the base so it would not move.At the moment I have 2 sets of dies. Flat and half round.I put UHMW on the front and back of the uprights which helps the bar that the bottom dies sits on slide up and down.I also made it so the top of the jack attaches to the base of the die it helps the die base come down with the jack. The silver handle is what releases the jack to be pulled down by the springs. Its 20 tons in a very small package that you can set on the bench and use.








































The Mini press on my fab table

The handle to release the jack

The half round dies

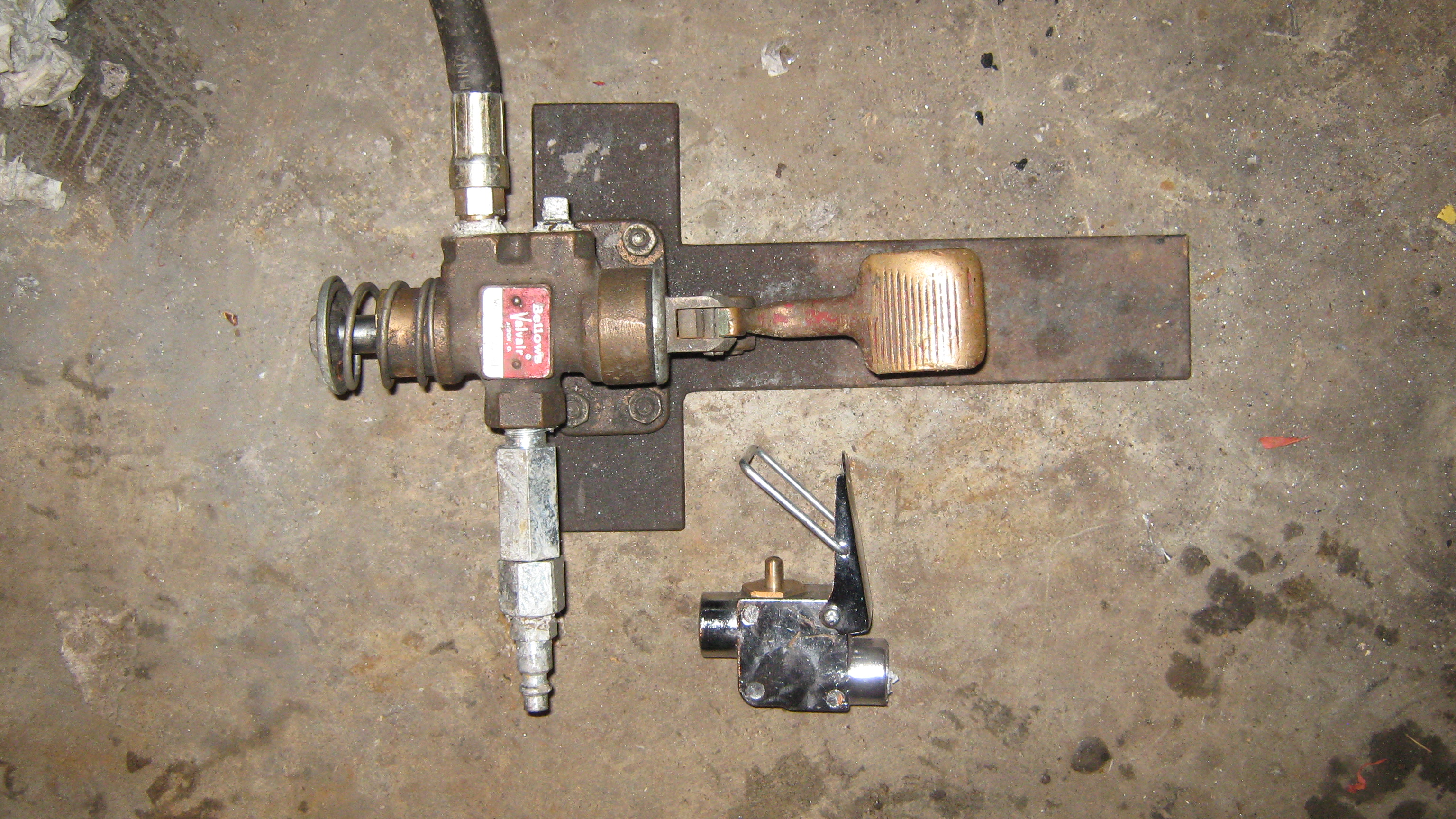

I changed out the valve that came with the jack and put on the foot valve

This is where the top of the jack hooks into the the base of the die carrier
